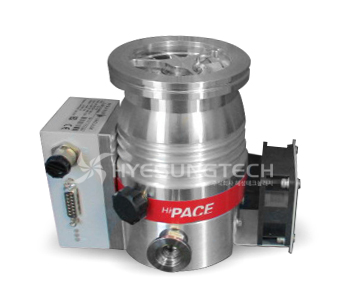

PFEIFFER HiPace 80 Pump Specification

Parameter	HiPace 80	HiPace 80	HiPace 80
Flange (in)	DN 63 ISO-K	DN 63 CF-F	DN 40 ISO-KF
Flange (out)	DN 16 ISO-KF / G 1/4"	DN 16 ISO-KF / G 1/4"	DN 16 ISO-KF / G 1/4"
Pumping speed for Ar	66 l/s	66 l/s	30 l/s
Pumping speed for H2	48 l/s	48 l/s	38 l/s
Pumping speed for He	58 l/s	58 l/s	41 l/s
Pumping speed for N2	67 l/s	67 l/s	35 l/s
Compression ratio for Ar	> 1 · 1011	> 1 · 1011	> 1 · 1011
Compression ratio for H2	1.4 · 105	1.4 · 105	1.4 · 105
Compression ratio for He	1.3 · 107	1.3 · 107	1.3 · 107
Compression ratio for N2	> 1 · 1011	> 1 · 1011	> 1 · 1011
Gas throughput at full rotational speed for Ar	0.54 mbar l/s	0.54 mbar l/s	0.54 mbar l/s
Gas throughput at full rotational speed for He	2.7 mbar l/s	2.7 mbar l/s	2.7 mbar l/s
Gas throughput at full rotational speed for H2	15.3 mbar l/s	15.3 mbar l/s	15.3 mbar l/s
Gas throughput at full rotational speed for N2	1.3 mbar l/s	1.3 mbar l/s	1.3 mbar l/s
Fore Vacuum max. for Ar	23 mbar	23 mbar	23 mbar
Fore Vacuum max. for CF4	20 mbar	20 mbar	20 mbar
Fore Vacuum max. for H2	14 mbar	14 mbar	14 mbar
Fore Vacuum max. for He	22 mbar	22 mbar	22 mbar
Fore Vacuum max. for N2	22 mbar	22 mbar	22 mbar
Run-up time	1.7 min	1.7 min	1.7 min
Ultimate pressure with OnToolTM DryPump	< 1 · 10-7 mbar	< 5 · 10-10 mbar	< 1 · 10-7 mbar
Rotation speed ± 2 %	90000 rpm	90000 rpm	90000 rpm
Rotation speed: variable	20-100 %	20-100 %	20-100 %
Power characteristic line in gas mode 1, vertex A	80/90000 W/rpm	80/90000 W/rpm	80/90000 W/rpm
Power characteristic line in gas mode 1, vertex B	80/84000 W/rpm	80/84000 W/rpm	80/84000 W/rpm
Power characteristic line in gas mode 0, vertex C	56/90000 W/rpm	56/90000 W/rpm	56/90000 W/rpm
Power characteristic line in gas mode 0, vertex D	65/81000 W/rpm	65/81000 W/rpm	65/81000 W/rpm
Power characteristic line in gas mode 2, vertex E	80/90000 W/rpm	80/90000 W/rpm	80/90000 W/rpm
Power characteristic line in gas mode 2, vertex F	80/84000 W/rpm	80/84000 W/rpm	80/84000 W/rpm
Sound pressure level	≤ 48 dB (A)	≤ 48 dB (A)	≤ 48 dB (A)
Relative humidity of air	5-85, noncondensing %	5-85, noncondensing %	5-85, noncondensing %
Protection category	IP 54	IP 54	IP 54
Connection pressure max. for venting/sealing gas valve	1.5 bar	1.5 bar	1.5 bar
Operating voltage	24 ± 5 % V DC	24 ± 5 % V DC	24 ± 5 % V DC
Operating voltage power supply	90-265 V AC	90-265 V AC	90-265 V AC
Integral leak rate	< 1 · 10-7 mbar l/s	< 1 · 10-7 mbar l/s	< 1 · 10-7 mbar l/s
Power consumption max.	110 W	110 W	110 W
Current consumption max.	4.6 A	4.6 A	4.6 A
Venting connection	G 1/8"	G 1/8"	G 1/8"
Weight	2.4 kg	3.8 kg	2.4 kg
Cooling method, standard	Convection	Convection	Convection
Cooling method, optional	Air/Water	Air/Water	Air/Water
Cooling water temperature	5-25 °C	5-25 °C	5-25 °C
Cooling water consumption	75 l/h	75 l/h	75 l/h
Permissible magnetic field max.	3.3 mT	3.3 mT	3.3 mT
Interfaces	RS-485, Remote	RS-485, Remote	RS-485, Remote
