    OSAKA

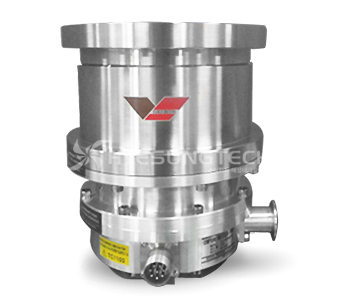

    TG1100F Pump Specification


    Parameter TG1100F
    Inlet Flange ISO200
    CF200
    Pumping Speed, L/S  Nitrogen 1100
     Helium 820
     Hydrogen N/A
    Ultimate Pressure 10 - 9 mbar
    Startup Time 10 min
    Rotational Speed 33,600 rpm
    Orientation Any
    Backing Pressure 10 mbar
    Outlet Flange NW40
    Weight 66 lb
    Controller TC1104
