OSAKA

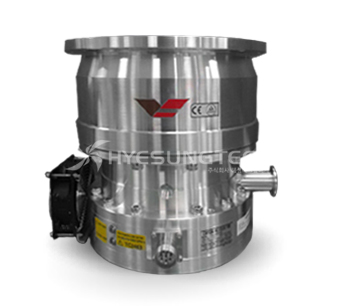

TG2400F Pump Specification
| Parameter | TG2400F | ||
|---|---|---|---|
| Inlet Flange | ISO250 CF250 | ||
| Pumping Speed, L/S | Nitrogen | 2400 | |
| Helium | 1100 | ||
| Hydrogen | N/A | ||
| Ultimate Pressure | 10 - 9 mbar | ||
| Startup Time | 1.5 min | ||
| Rotational Speed | 33,600 rpm | ||
| Orientation | Any | ||
| Outlet Flange | NW40 | ||
| Weight | 103 lb | ||
| Controller | TC2403 | ||
