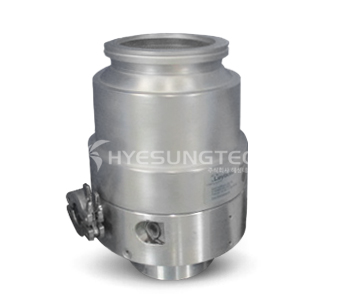

LEYBOLD TMP361 Series Specification
[이 게시물은 혜성테크놀…님에 의해 2020-06-18 09:09:53 specification에서 복사 됨]
| Parameter | TMP361 | TMP361C | ||||
|---|---|---|---|---|---|---|
| High-vacuum port | 100 ISO-K 100 CF nom. diam. |
160 ISO-K 160 CF nom. diam. |
100 ISO-K nom. diam. |
160 ISO-K nom. diam. | ||
| Pumping speed for N₂ | 345 l/sec | 400 l/sec | 345 l/sec | 400 l/sec | ||
| Ultimate pressure | < 10⁻¹⁰ mbar | |||||
| Forevacuum pressure | 0.5 mbar | |||||
| Recommended forevacuum Pump |
D 16 B TRIVAC | D 25 B TRIVAC | ||||
| Recommended frequency converter |
20 NT | |||||
| Speed | 45,000 rpm | |||||
| Run-up time approx. | 2 min | |||||
| Coolant connection nozzle | 10 mm | |||||
| Coolant temperature | 10 – 25 °C | |||||
| Coolant flow rate at 15 °C |
20 l·h⁻¹ | |||||
| Forevacuum port | 25 KF nom. diam. | |||||
| Purge gas port | - | 10 KF nom. diam. | ||||
| Vent port | 10 KF nom. diam. | |||||
| Weight approx. | 12 kg | |||||
| Max. ambient temperature at operation |
55 °C | |||||
| Max. bakeout temperature at CF flange |
100 °C | - | ||||
